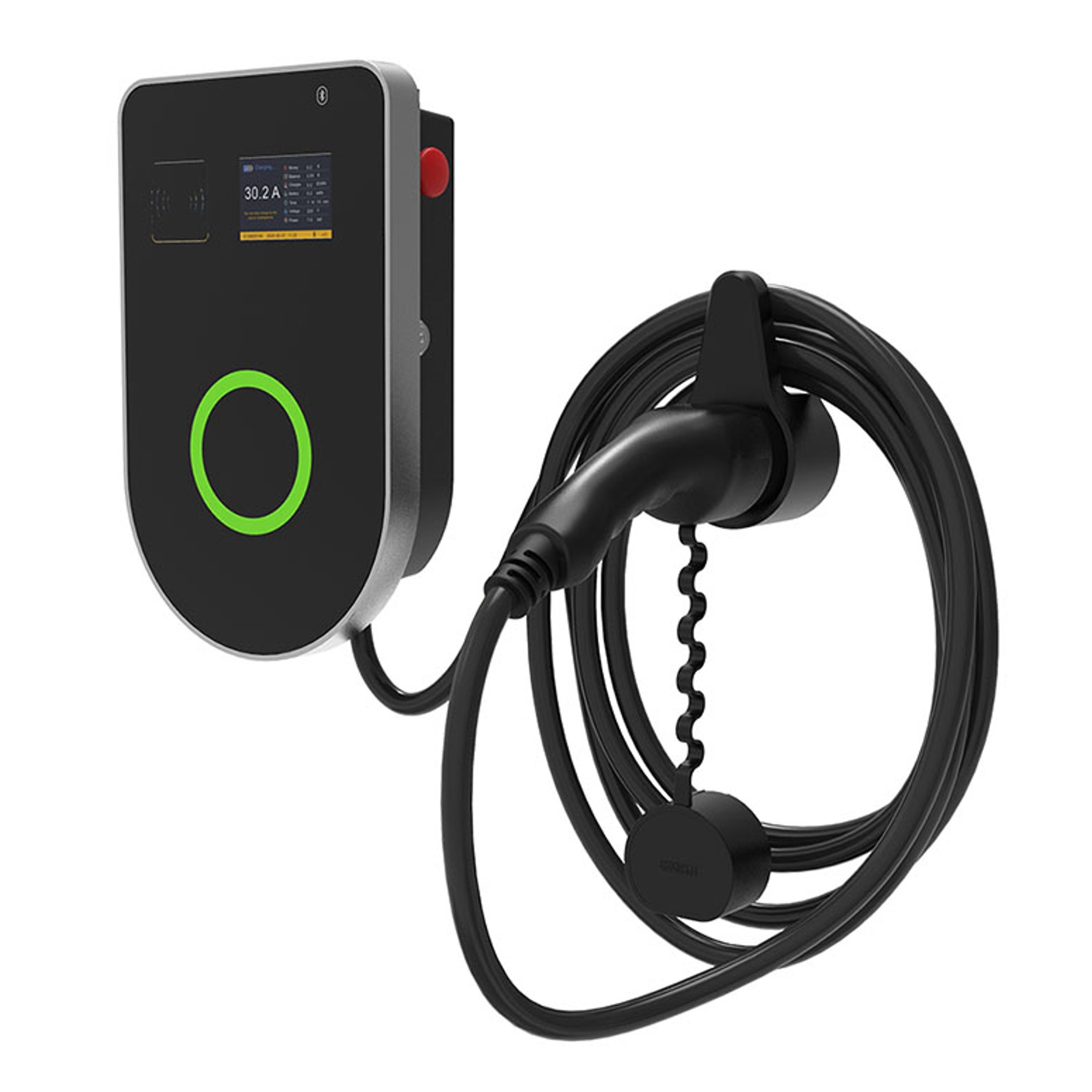

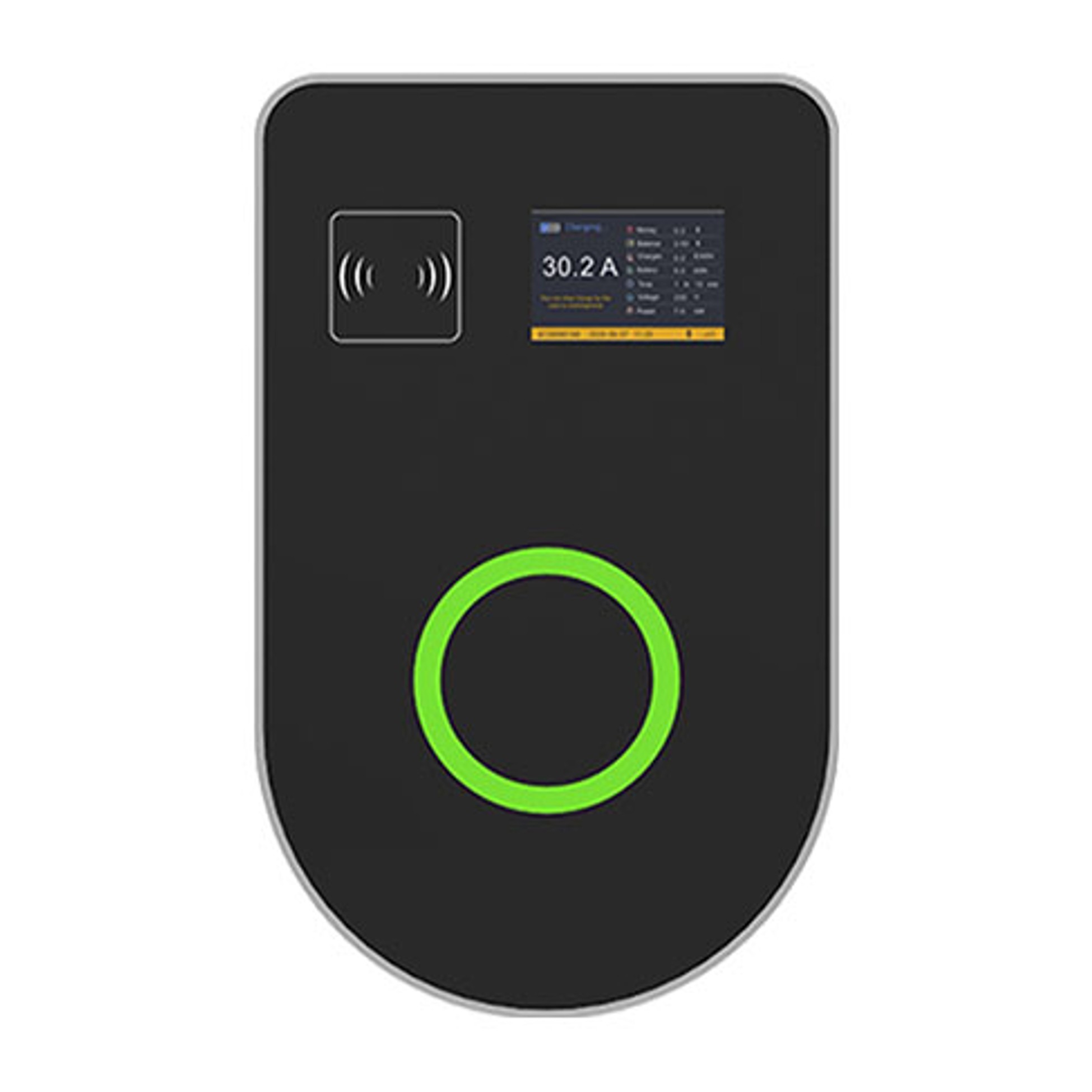

22kW OCPP AC EV Charging Station
R13,390
- Fastest 3-Phase AC EV charging for commercial locations with 3-phase power.
- For OCPP back-end station control applications.
- Large colour display of charging parameters and charge status.
- Emergency Switch and built-in safety protections.
In stock
| Function | Mode 2 AC EV Charging |
| Type | Installed AC EV Charging Station |
| Power rating | Level 2: Max 32 Amps / 3-Phase / 22 kW |
| Station Control | OCPP1.6 Json |
| Communication | Wi-Fi / Ethernet / 4G |
| Energy Meter | MID Certified |
| EV Plug | Type 2 (IEC 62196) |
| Charging Cable | TPU jacket (CE, TUV Certified) |
| Cable Length | 5 m |
| Station Dimensions | 400 x 225 x 160 mm |
| Colour / Material | Tempered Glass front panel/ Black polycarbonate |
| IP Rating | IP65, IK10 |
| Display | 3.5-inch LCD + RGB Charge status indicators |
| RCD Protection | AC 30mA |
| Other Protections | Emergency Switch. Over-voltage, under-voltage, grounding, leakage, over-current, over-temperature. |
| Operating voltage | 380 – 480 VAC 50/60 Hz |
| Operating temp | -30° to +55° C |
| Standards | IEC 61851with CE Certification |
| Packed mass | 5 kg |
| Packed dimensions | 46 x 30 x 25 cm |
| Model | YLEV22K-S3 |
| Warranty | 2 Years |
| Included | User manual, 2x RFID cards, security key, plug and cable holder |
