7.4kW ZENCAR WPRO Station with DLB
R9,999
- Dynamic Load Balacing (DLB) for smart home energy management.
- Monitors total household demand in real-time and automatically adjusts charge current to avoid nuisance tripping.
- Tuya App control of charging functions and daily scheduling.
- Premium TUV-Certified AC EV charging wall box.
In stock
| Charging Method | Mode 3 – AC EV Charging Station |
| Power Level | Level 2 – 32 Amps / 7.4 kW |
| Current | 6 to 32 Amp, Adjustable in 1A increments |
| Start Modes | Plug and charge / RFID start / App start / Schedule start |

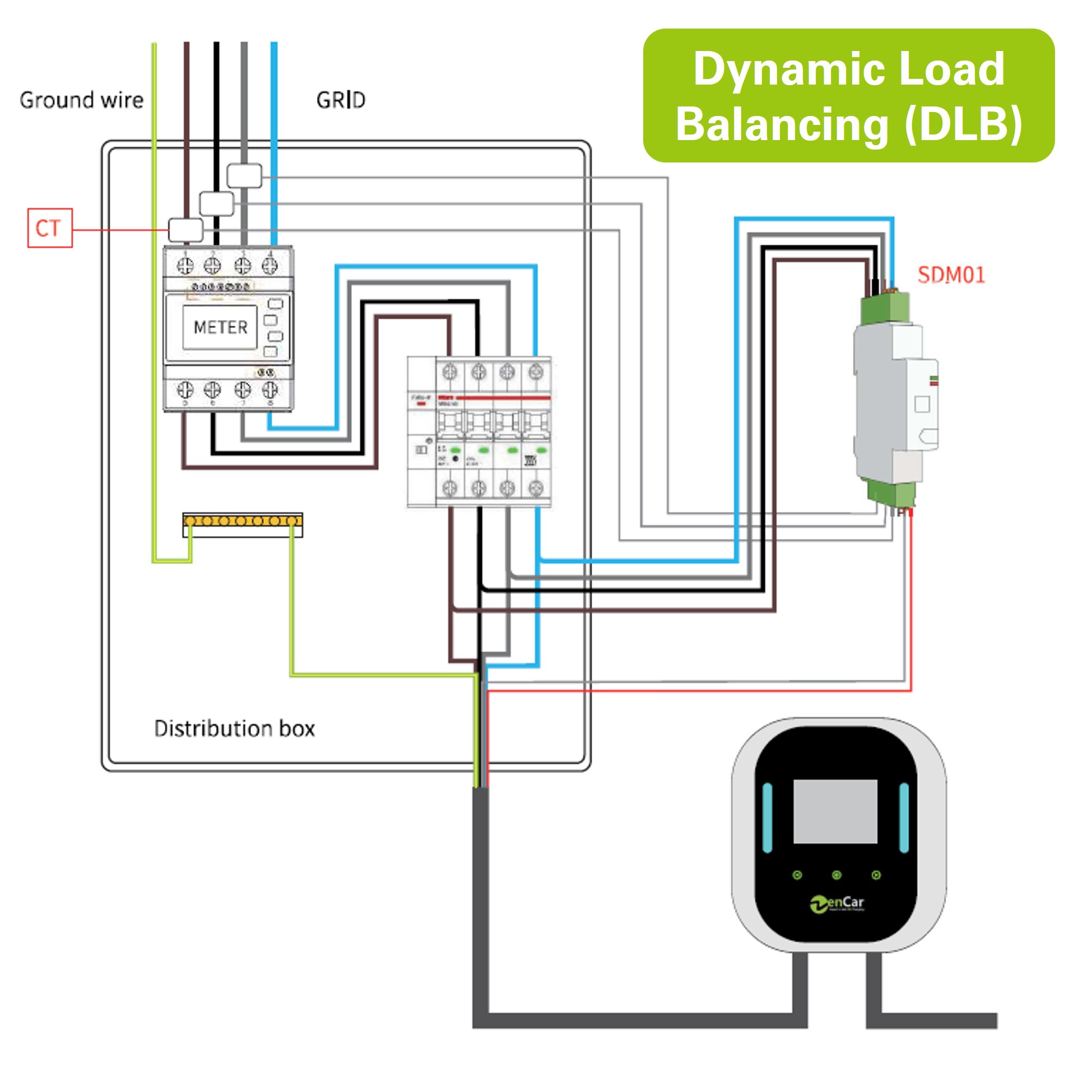

| Dynamic Load Balancing | RS485 wired communication to Energy Management Device (EMD) / Current Transformer (CT) fitted in your DB |
| Connectivity | Wi-Fi (2.4 GHz) / BT |
| iOS / Android App | Tuya / Smart Life App |
| EV Charge Plug | Type 2 (IEC 62196) |
| Charging Cable | TPU jacket (CE, TUV Certified) |
| Cable length | 5 m |
| Control Unit | Wall-mounted with power lead |
| Dimensions | 200 x 220 x 130 mm |
| Colour / Material | Black/Silver Polycarbonate |
| IP Rating | IP66 Weatherproof |
| Display | 3.5” Colour LCD display + RGB indicators |
| RCD Protection | Type B (AC 30mA + DC 6mA) |
| Protections | Over voltage / under voltage / over current / short circuit / leakage ground / over temperature |
| Operating voltage | 220 – 240 VAC 50/60 Hz |
| Operating temp | -30° to +50° C |
| Standards | IEC 61851 with TUV CE, UKCA, RoHS certification |
| Mass | < 5.5 kg |
| Packaging Box | 440 x 420 x 140 mm |
| Model | S7-ZEN-WPRO-DLB |
| Warranty | 2 Years |

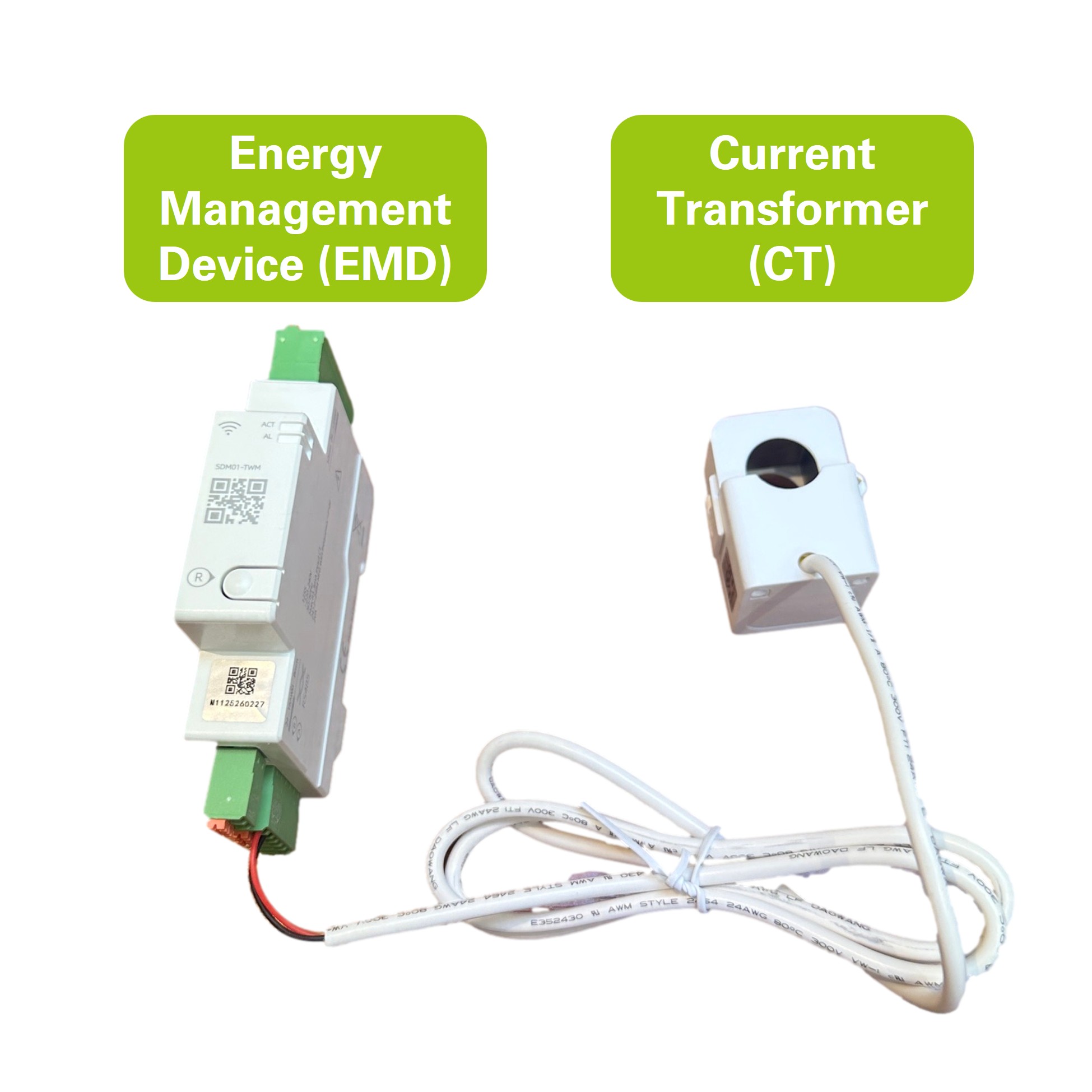

| Included | Energy Management Device (EMD)* with Current Transformer (CT), Wall mounting bracket, Plug and cable holder, 2 x RFID cards, operators manual. Twisted pair cable from EMD to WPro excluded (customise to your requirement |
*Excludes RS485 twisted pair cable from EMD to WPro (customise to your requirement).
